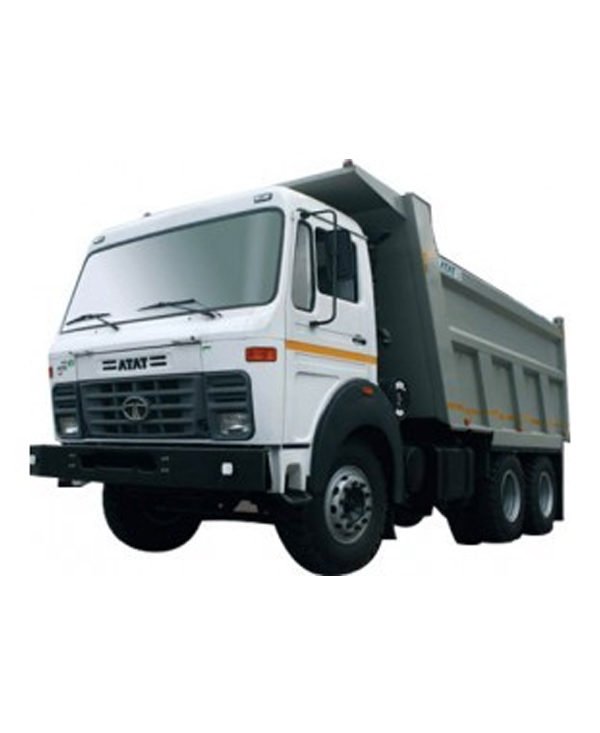

LPK 2523 HD 9S

 TATA LPK 2523 HD 9S is another quality version of the standard LPK 2523. The tripper is also available in two different models, including 38/16 CuM/Box Body and 38/14 CuM/Scoop Body.

Both the trucks are built on a wheelbase of 3,880 mm, and the ground clearance is 235 mm. The GCW of 25,000 kilogrammes assures that the vehicle comes handy in the construction work. As for the comfort features, there are power steering with tiltable column and adjustable driver seat. The air brakes and parking brakes take care of the stopping duties. The semi-elliptical leaf spring unit is at the front, while the inverted bogie suspension is at the rear.

Under the hood, a CUMMINS ISBe 5.9-litre engine is present that can produce a maximum power of 224 hp coming at 2,500 rpm, and the peak torque is 850 Nm at 1,500 rpm.
