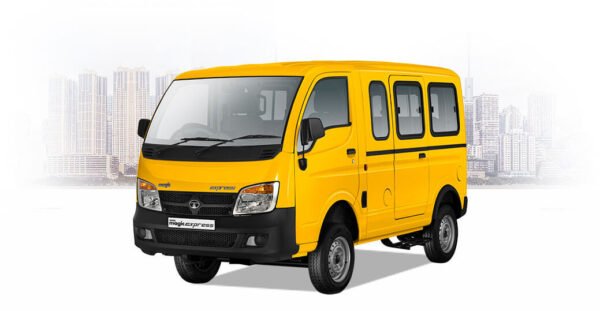

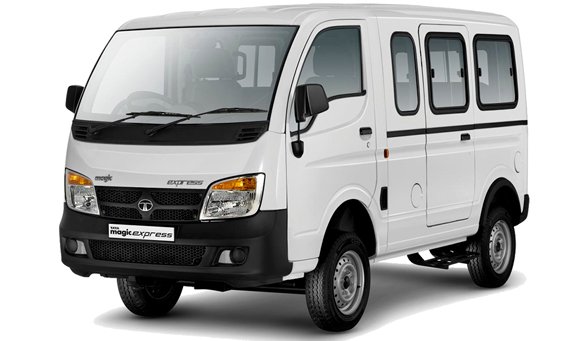

TATA MAGIC EXPRESS

Presenting the All-new Magic Express 10 Seater – one of India’s most economical diesel commercial vehicles in the last mile Public Transport segment. It can be a highly profitable vehicle for your business as it is high on performance and low on maintenance.

Created on the strong base of the Tata Magic Express, a proven product in this category, the Magic Express combines mileage, speed, and comfort, taking the Magic brand a step forward and providing a source of increased earnings for you.

Tata Magic Express features a powerful 33 kW (44 HP) engine, a torque of 110 Nm for better pickup and greater mileage at 21.84 km/l. This performance is powered by a BS6 compliant, state-of-the-art 800 CC BS6 engine with SCR technology

With a best-in-class top speed of 80 km/h*and gradeability of 38%, Magic Express easily navigates rough terrains with a high turnaround time, thus making it the vehicle of choice for those seeking the mantra for success.

Magic Express comes with a whole range of new value added features that will boost your business profits by increasing driver efficiency – the fuel-saving ECO switch/USB charger/gear shift advisor/new Instrument cluster/improved driver ergonomics/rear park assist, tubeless tyres.

All in all, Magic Express brings high performance with low maintenance and an unmatched warranty of 2 years/72,000 kms** – it can deliver substantial business growth for your business. Tata Motors offers all Magic Express owners a free service schedule every 10,000, 20,000 and 30,000 kilometres.

TATA MAGIC EXPRESS 10 SEATER SPECIFICATIONS
ENGINE
NO. OF CYLINDERS Two
ENGINE CAPACITY (CC) 798 cc DICOR
POWER (HP @ RPM) 44 @ 3750
TORQUE (NM @ RPM) 110 Nm @ 1700-2000
DRIVELINE
CLUTCH 190mm,Single plate dry friction
GEARBOX 5 Speed Synchromesh
BRAKES
FRONT Disc
REAR Drum
SUSPENSION
FRONT Parabolic leaf spring
REAR Semi-elliptical leaf
ANTI-ROLL BAR Front & Rear
TYRES
SIZE 155 R13 Radial
PERFORMANCE
GRADEABILITY(%) 38
GRADE RESTARTABILITY 22%
TOP SPEED 80 kmph
TANK
FUEL TANK CAPACITY 30 l
UREA TANK CAPACITY 10 l
DIMENSIONS (IN MM)
DIMENSIONS (L X W X H) 3790 X 1500 X 1890
WHEELBASE (MM) 2100
GROUND CLEARANCE (MM) 150
TURNING CIRCLE RADIUS (MM) 4.3
KMPL 21.84 km/l
WEIGHTS
GROSS VEHICLE WEIGHT (GVWR) (KG) 1950
SEATS
SEATING CAPACITY 9+D
WARRANTY 24 months OR 72,000 kms
