Electric

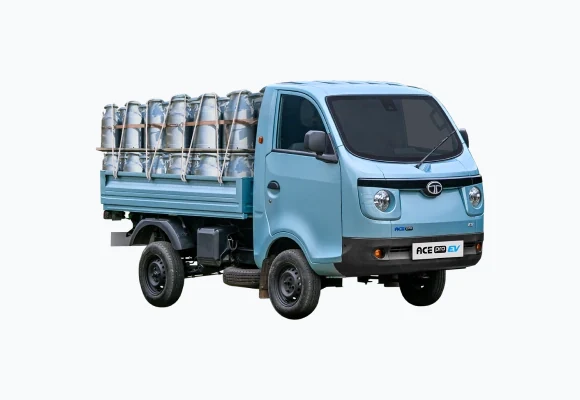

Tata Ace Pro EV
Tata's electric mini truck: 750 kg payload, 14.4 kWh LFP battery, 29 kW motor and a certified range of 155 km.
Payload
750 KG
Range
155 KM
Charging
Fast Charge
Emission
Zero
Highlights
- check_circleCertified range of 155 km (100-120 km real-world) on a single charge
- check_circleLithium Iron Phosphate (LFP) battery rated IP67, 8 years / 1.75 lakh km warranty
- check_circleSlow charging (5-100%) in under 6 hours
- check_circleMechanical rack and pinion steering with tight 3.75 m turning radius
- check_circleComplies with AIS-096
Specifications
Motor & Battery
- Motor Type
- PMSM (permanent magnet synchronous motor)
- Max Power
- 29 kW @ 3500 rpm
- Max Torque
- 104 Nm @ 0-2500 rpm
- Battery Chemistry
- Lithium Ion Iron Phosphate (LFP)
- Battery Energy
- 14.4 kWh
- Certified Range
- 155 km
- Real-world Range
- 100-120 km
- Slow Charging (5-100%)
- Less than 6 hours
- Battery Warranty
- 175,000 km / 8 years
Performance & Chassis
- Gearbox
- E-transaxle with drive shafts
- Steering
- Mechanical rack & pinion
- Max Speed
- 50 km/h
- Gradeability
- 21%
Dimensions & Weight
- Length
- 3560 mm
- Width
- 1497 mm
- Height (unladen)
- 1820 mm
- Wheelbase
- 1800 mm
- Ground Clearance
- 170 mm (min, laden)
- Load Body
- 2046 x 1485 x 326 mm
- GVW
- 1610 kg
- Kerb Weight
- 860 kg
- Payload
- 750 kg
Specifications as published by Tata Motors — see Tata Motors' official page. Final specifications, on-road price and availability are confirmed by the dealer at the time of booking.
