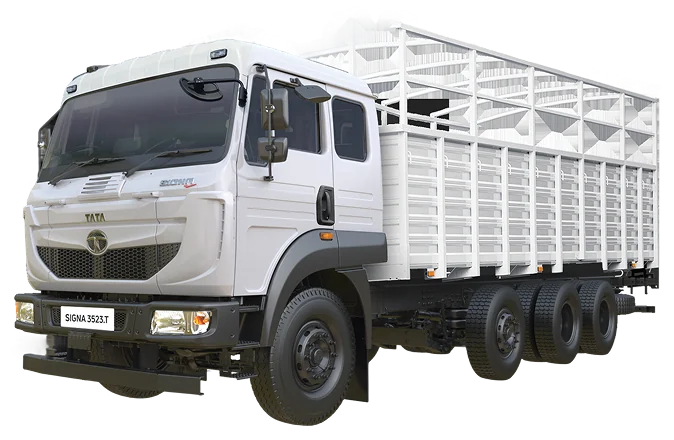

Tata Signa 3523.T
35-tonne GVW 12-wheeler with a Cummins ISBe 5.6L engine (169 kW / 230 HP, 925 Nm), available with LPT cowl or Signa cabin and 24-32 ft load spans.
GVW
35T
Engine
Cummins ISBe 5.6L
Power
230 HP
Use
Heavy Cargo
Highlights
- check_circleCummins ISBe 5.6, 6-cylinder, 5635 cc engine with 169 kW (230 HP)
- check_circle925 Nm of torque from 1000-1600 rpm
- check_circleTata G950 6-speed gearbox with 395 mm clutch
- check_circle365 L HDPE tank with electronic anti-fuel theft
- check_circle6 year / 6 lakh km driveline warranty, 3 year / 3 lakh km on the vehicle
Specifications
Engine & Performance
- Engine
- Cummins ISBe 5.6, 6 cylinder, 5635 cc
- Max Power
- 169 kW (230 HP) @ 2300 rpm
- Max Torque
- 925 Nm @ 1000-1600 rpm
- Fuel Type
- Diesel
- Fuel Tank
- 365 L HDPE
- Electronic Anti-fuel Theft
- Yes
- DEF Tank
- 60 L
Transmission & Chassis
- Clutch
- 395 mm, single plate dry friction
- Gearbox
- Tata G950, 6-speed
- Rear Axle
- Tata RA 110
- Front Suspension
- Parabolic leaf spring
- Wheels
- 12 wheels
- Tyres
- 295/90 R20
- Cabin
- LPT cowl / Signa cabin
- Warranty
- Driveline 6 years / 6 lakh km, vehicle 3 years / 3 lakh km
Body & Weight
- GVW
- 35000 kg
- Wheelbase Options
- 5600 / 6000 / 6800 mm
- Load Span Options
- 24 / 28 / 32 ft
- Seating
- D+2
Specifications as published by Tata Motors — see Tata Motors' official page. Final specifications, on-road price and availability are confirmed by the dealer at the time of booking.
