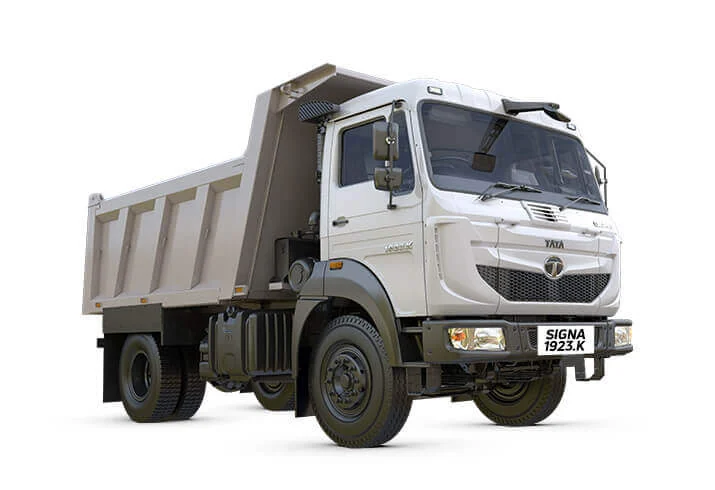

Tata Signa 1923.K
18.5-tonne GVW Signa tipper with a Cummins 5.6L BS6 engine (164.7 kW / 230 PS, 925 Nm), built for construction and mining duty.
GVW
18.5T
Engine
Cummins 5.6L
Power
230 PS
Use
Tipper / Construction
Highlights
- check_circleTata Cummins B5.6 BS6 engine with 164.7 kW (230 PS) and 925 Nm
- check_circleG950-6 gearbox with 380 mm hydraulically actuated clutch
- check_circle300 L HDPE fuel tank
- check_circleFull 18.5 tonne GVW tipper configuration
- check_circleSigna cabin with 295/90 R20 tyres
Specifications
Engine & Performance
- Engine
- Tata Cummins B5.6 BS6, 6 cylinder
- Max Power
- 164.7 kW (230 PS) @ 2300 rpm
- Max Torque
- 925 Nm @ 1000-1600 rpm
- Fuel Type
- Diesel
- Fuel Tank
- 300 L HDPE
Transmission & Chassis
- Clutch
- 380 mm, hydraulically actuated with pneumatic assistance
- Gearbox
- G950-6
- Tyres
- 295/90 R20
Body & Weight
- GVW
- 18500 kg
- Load Body Length
- 17 ft
- Load Body Type
- HSD
- Load Body Dimension
- 5218 x 1962 x 1812 mm
Specifications as published by Tata Motors — see Tata Motors' official page. Final specifications, on-road price and availability are confirmed by the dealer at the time of booking.
